AF C4.10 bit boasts four high-fidelity amplified channels 90W x 4 @4Ω*, 150W x 4 @2Ω*, with the audiophile sound of the latest generation Audison D-Class technology. Higher switching frequencies, steeper filtering, and higher-tolerance components deliver sound above and beyond the expectation of Class D – in an amazingly compact package! This is combined with native DSP working at 24 bit/96 kHz, extending the audio band up to 40 kHz and earning the coveted High-Resolution certification. Bridging channel pairs results in 300 x 2 @4Ω, guaranteeing flexible and powerful performance. Support for the Audison B-Con’s Absolute Volume function guarantees maximum bit depth, even with wireless connections!*Output Continuous Power (RMS) @14.4 VDC, 1% THD, all channels driven.

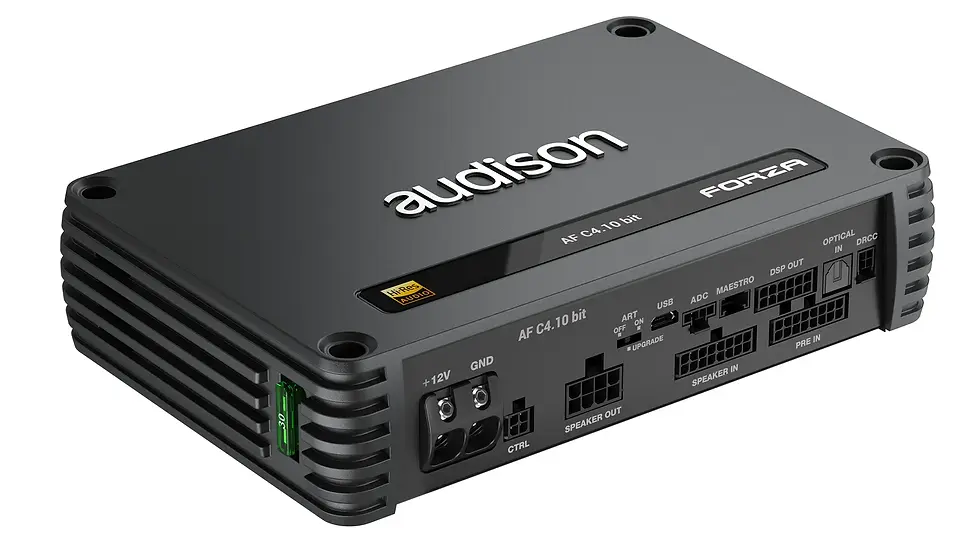

Audison Forza AF C4.10 bit
Technical Specification
Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power 0.03%
Bandwidth @ -1.5 dB 10 Hz ÷ 42 kHz
Damping factor @ 1 kHz, 4Ω, 2 VRMS 95
S/N ratio (A weighted @ 1 V Input) Master Input 98 dBA
S/N ratio (A weighted @ 1 V Input) Optical Input 105
Input sensitivity Pre-In 0.6 ÷ 6 VRMS (15 kΩ Imp.)
Input sensitivity Speaker-In 2.2 ÷ 22 VRMS (5 Ω Imp.)
Total Power RMS 600 W
Minimum load impedance 2Ω
Output Continuous Power (RMS) @14.4 VDC, 1% THD 4 Ch @ 4Ω: 90 W x 4
4 Ch @ 2Ω: 150 W x 4
2 Ch (Bridge 1/2; 3/4) @ 4Ω: 300 W x 2
Dimension 200 mm x 134 mm x 47 mmAll of our products can be professionally installed into your vehicle by our expert team.
