Ultra High Power Class D Competition Amplifier
Competition SPL amplifier. One of the most powerful automotive bass amplifiers in the world. Ultra efficient Class D topology maximises available battery power and minimises losses ensuring maximum power delivery to the subwoofers. 18v DC input stability allowing the user to maximise the power output from the non-regulated power supply. Dual 0AWG power input terminals allow huge cable to be connected between the vehicles power supply and the amplifier PCB. Amplifier strapping circuit allows 2 amplifiers to be connected together to deliver their combined output power into a single channel delivering up to 29,000 watts RMS. Parametric bass boost allows the user to boost the frequency of their choice. Low pass and subsonic crossover filters. 12dB per active on-board active crossover network. Remote gain control. Audio pass through RCA output. Full CE certification.

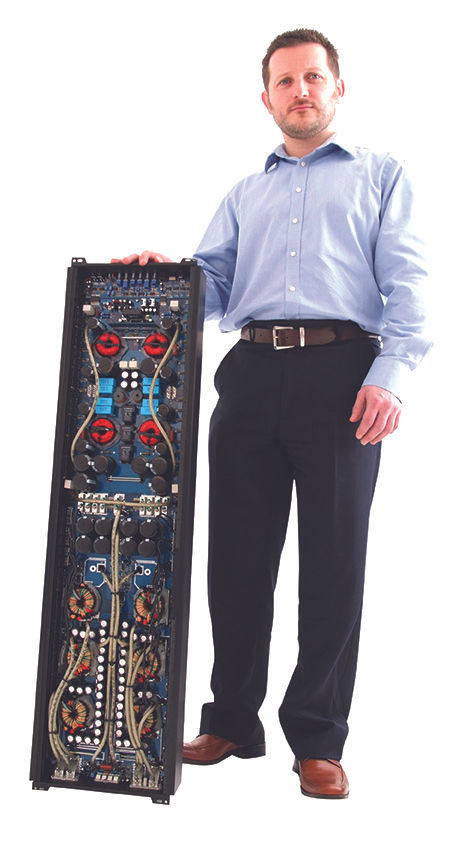

BLACKDEATHBASS2-V1: BLACK DEATH 29000 WATT MONO COMPETITION AMPLIFIER
- Model BLACKDEATHBASS2-V1
- Configuration Mono amp
- Dimensions (H x W x D) 75mm (3”) x 1000mm (39.4”) x 300mm (11.8”)
- RMS @ 4Ω Mono 14.4v 1% THD 1 x 2650 watts
- RMS @ 2Ω Mono 14.4v 1% THD 1 x 5200 watts
- RMS @ 1Ω Mono 14.4v 1% THD 1 x 9000 watts
- RMS @ 1Ω Mono 14.4v 10% THD 1 x 11,250 watts
- RMS @ 4Ω Mono 18v 1% THD 1 x 3200 watts
- RMS @ 2Ω Mono 18v 1% THD 1 x 6000 watts
- RMS @ 1Ω Mono 18v 1% THD 1 x 11,600 watts
- RMS @ 1Ω Mono 18v 10% THD 1 x 14,500 watts
- Maximum Power 29,000W
- Frequency Response 10Hz – 350kHz
- Crossover Type LP / SUBSONIC
- Crossover Range 10Hz – 250Hz
