Indy CP is our top of the range modular all purpose full range speaker system. The multi-piece magnet delivers punchy midbass and the beautifully integrated tweeter offers smooth vocal performance right to the edge of the frequency range, through the carefully matched crossover network. The speakers can be used from a head unit if a relaxed and mellow sound is the goal and a modest sound level is acceptable, but the real excitement happens when a powerful external amplifier is used, when the speakers take on a different character and offer a punchy, powerful, much more exciting sound. Installation can be completed using the system as either as a component or a coaxial installation using the supplied hardware kit.

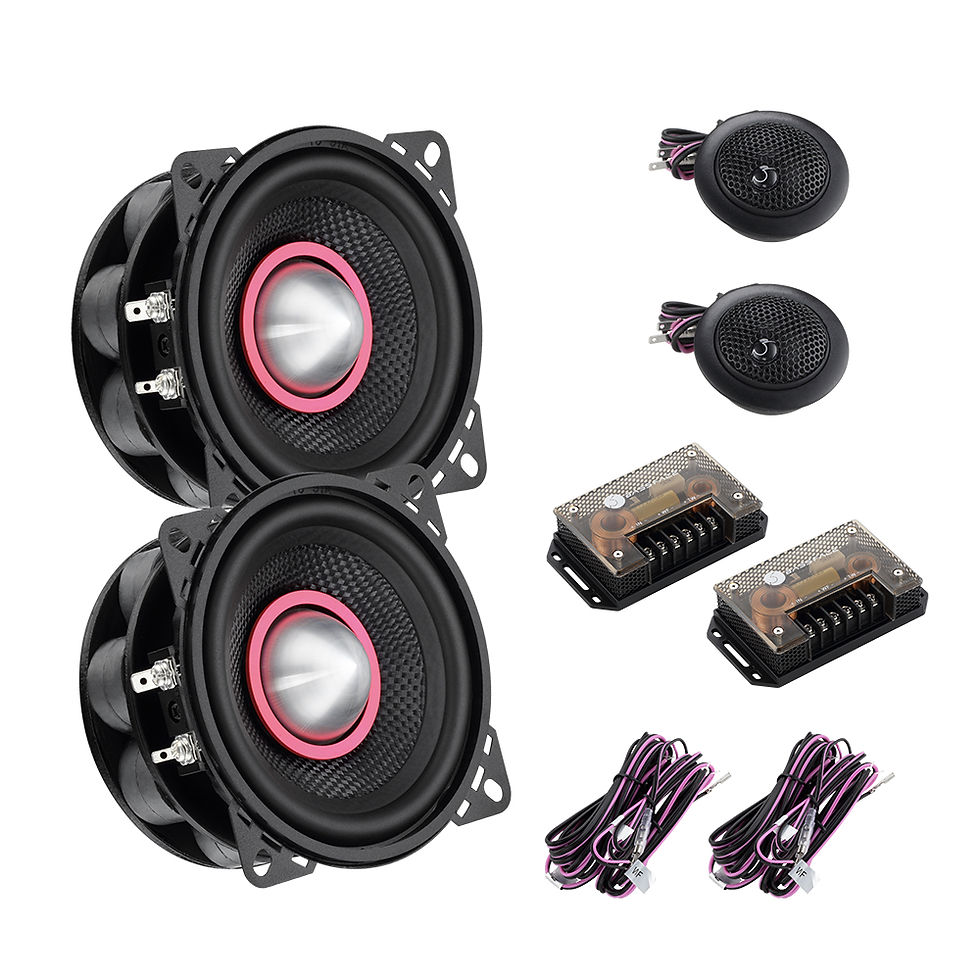

Indy CP4 4'' 4Ohm Component/Coaxial Midrange & Tweeter System 2x60w RMS Pair
- 2x60w RMS Continous Power Handling, 4 Ohm System
- Coaxial Or Component Installation (Crossover Included)
- 1.5" Kapton Woofer VC, Progressive Spider Pack
- Custom Fibreglass Woofer Cone, Nitrile Surround
- High End Y35 Multi-Piece Woofer & N38 Neodymium Tweeter Magnet
- Extremely Musical Silk Tweeter, 2 Layer ASV Coil
- Copper Shorting Ring For Smoother Load Response
TWEETER DATA
Voice Coil Diameter (mm) 20.4 Overall Depth (mm) 25 Mounting Depth (mm) 17 Front Protrusion From Mounting Plane (mm) 8 Overall Diameter (mm) 46 Magnet Diameter (mm) 19.5 Installation Cut-out Diameter (mm) 40 Magnet Weight (Oz) 0.25 Magnet Type NdFeB-N38 System RMS (Watts) (Single Tweeter, 4Khz/12DB Oct X Over) 40 Frequency Response (Hz) 1500>20000 Impedance (Ohm) 4 Sensitivity (db/1Wm) 92 SPEAKER DATA
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 60 Sensitivity (db/1Wm) 87 Total Magnet Weight (Oz) 7.5 Optimum Bass Enclosure Type IB Voice Coil Former Spec Kapton Voice Coil Type SV Type (200 Degree C) Voice Coil External Diameter (mm) 38.9 Voice Coil Internal Diameter (mm) 38.6 Voice Coil Winding Height (mm) 7 Voice Coil Winding (Layers) 2 Cone Type Fiberglass Spider Compliance 0.5 Spider Type Progressive Spider Diameter (mm) 74 Spider Design Single Surround Rubber Surround Material Rubber Tinsel Wire High Temperature Terminal Screw type
