To give your subwoofers some serious power at an affordable price, we offer the ASA3 range in super efficient Class D power. This line offers amplifiers that can provide up to 1,500 watts to a single woofer (if it can take it).
Our ASA3 Class D amplifiers are always 1-ohm stable, and still come complete with all our sought after features like subsonic filters to keep ultra low frequencies from zapping power from frequencies that you do not want to reproduce and protection circuitry that will keep your amplifier from blowing up during duress.
Our Bass EQ control also gives you the ability to increase your subwoofers output by up to 18dB at the earth shaking frequency of 45 Hz to give your competition the knockout punch.
To finish these amps off, we include a remote secondary level control to give you the ultimate in subwoofer volume control from the cockpit of of your vehicle.
- 600 Watt High Efficiency Class A/B Design
- 2-OHM Stable Mono Block Amplifier
- PWM MOSFET Power Supply
- Low Level RCA Input/Low Level RCA Pass Through Output
- Remote Soft Delay Turn On/Off Circuit
- Variable Low Pass Electronic Crossover
- Variable 12dB Bass Boost EQ
- Variable Gain Control
- Wired Secondary Remote Gain Control Included
- Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
- Switchable Logo Back Lighting

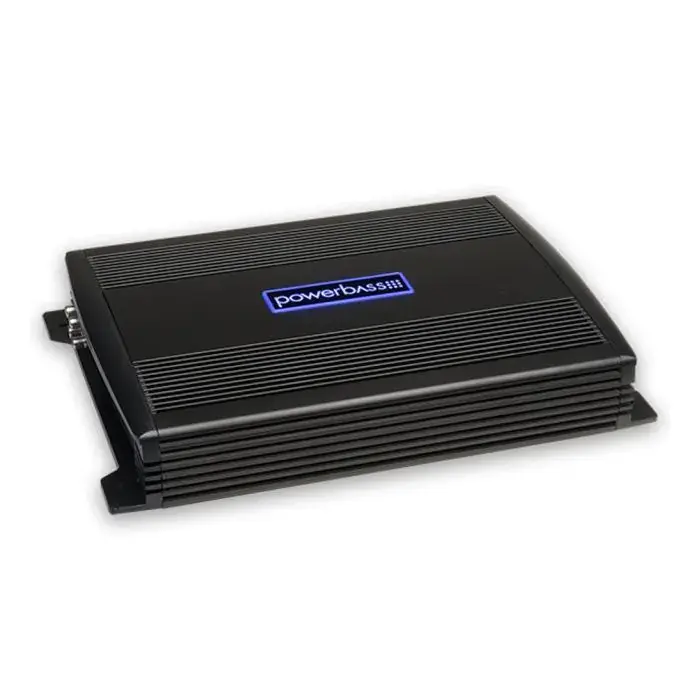

Powerbass ASA3 600.1D - Class-D Mono Amplifier 600W
- Selectable Subwoofer EQ: 0-18 dB Gain @ 45Hz
- Variable Subsonic Freq: 15 Hz - 50 Hz
- Inputs: RCA Input/RCA Pass-Through Output
- Equalization Boost/Cut: 0 - 18 dB
- Subwoofer Frequency Range: 20 Hz - 150 Hz
- Power Supply: Unregulated PWM
- Height: 2.3"
- Width: 9.4"
- Depth: 13.6"
- 4-ohm Mono Power: N/A
- 4-ohm Power: 200 watts x 1
- 1-ohm Mono Power: 600 watts x 1
- 2-ohm Power: 400 watts x 1
- Subwoofer EQ Frequency: 45 Hz
- Variable Subwoofer EQ: 0 - 18 dB
- Low-Pass Crossover Freq: 50 Hz -150 Hz
- High-Pass Crossover Freq: n/a
- Peak Power: 1200 watts
- Crossover Slope: 12 dB
- Dimensions (in Inches): 13.6" x 9.4" x 2.3"
- Input Sensitivity: 0.25 V - 6.0 V
- S/N Ratio: >80 dB
- Total Harmonic Distortion: >0.5% at Rated Power
- Strapped Output Power @ 2ohms: 1200 watts x 1
- Output Power (14.4 V) @ 4 ohm: 200 watts x 1
- Output Power (14.4 V) @ 2 ohm: 400 watts x 1
- Output Power (14.4 V) @ 1 ohm: 600 watts x 1
- Channels (mono): 1
- Frequency Response: 20 Hz - 250 Hz
