The XL series was developed for the growing Power Sports market including UTV and Marine applications, where electronics must withstand harsh damp environments. The circuit boards have been conformal coated with a layer of transparent material that protects the parts against moisture, dust and extreme temperatures.
These ultra small weather resistant amplifiers are ideal for all types of outdoor audio applications such as motorcycles, golf carts and off road vehicles. But the small size also makes these amps a great choice anywhere space is a premium.
Utilizing the latest Class D circuit design these amplifiers may be small on size but they are big on power and have a much lower current draw compared to other amplifiers with similar power output. The wrap around aluminum heatsink keeps everything running cool.
Extremely versatile, each model gives you’re a choice of low level RCA input or 3.5mm (1/8”) mini-pug Aux Input. The Aux Input allows for easy connection of portable devices such as an iPod, MP3 player or smartphone to become your source unit.

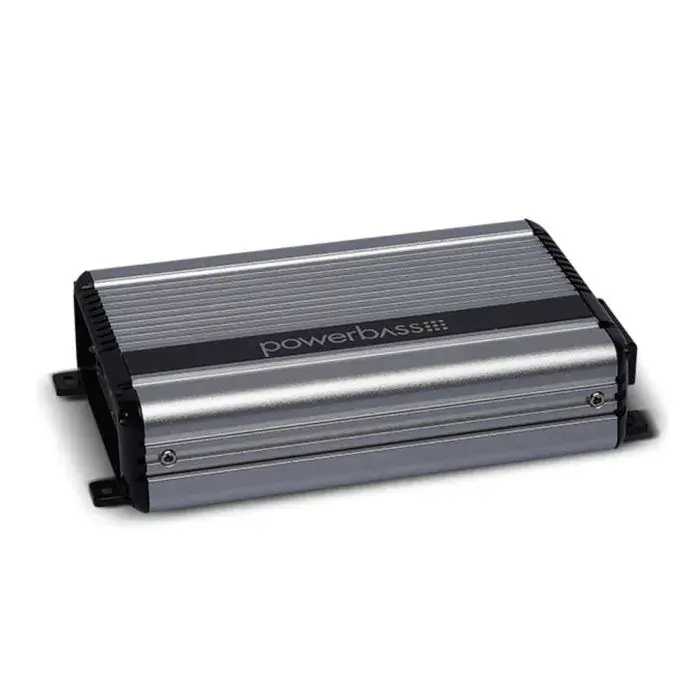

Powerbass XL-355DM - Monoblock PowerSport Class D Marine Amplifier 700W
- 350 Watt High Efficiency Class D Design
- 2-OHM Stable Mono Block Amplifier
- Ultra Low Current Draw
- Double Sided Copper Plated PCB
- Conformal Coated PC Board
- PWM MOSFET Power Supply
- Digital Sound Optimization Circuitry
- High Damping Control Circuit
- Variable Subsonic Filter
- High Current Voltage Ripple Rejection Circuitry
- 3.5mm AUX Input
- Remote Soft Delay Turn On/Off Circuit
- Variable Low Pass Electronic Crossover
- Variable 12dB Bass Boost EQ
- Variable Gain Control
- Wired Secondary Remote Gain Control Included
- Protection Circuit: Impedance Over-load, Speaker Short, Circuit, Thermal Overheating, and DC Output.
Specifications
- Selectable Subwoofer EQ: 0 - 18 dB Gain @ 45Hz
- Variable Subsonic Freq: 10 Hz - 50 Hz
- Inputs: RCA (speaker level compatible)/3.5mm Mini Jack Input
- Equalization Boost/Cut: 0 - 18 dB
- Subwoofer Frequency Range: 10 Hz - 250 Hz
- Power Supply: Unregulated PWM
- Height: 1.6"
- Width: 4.5"
- Depth: 7.5"
- 4-ohm Mono Power: 200 watts x 1
- 4-ohm Power: 200 watts x 1
- 1-ohm Mono Power: n/a
- 2-ohm Power: 350 watts x 1
- Subwoofer EQ Frequency: 45 Hz
- Variable Subwoofer EQ: 0 - 18 dB
- Low-Pass Crossover Freq: 50 Hz - 250 Hz
- High-Pass Crossover Freq: N/A
- Peak Power: 700 watts
- Crossover Slope: 24 dB
- Dimensions (in Inches): 7.5" x 4.5" x 1.6"
- Input Sensitivity: 0.25 V - 10.0 V
- S/N Ratio: >85 dB
- Total Harmonic Distortion: 0.04% at Rated Power
- Strapped Output Power @ 2ohms: N/A
- Output Power (14.4 V) @ 4 ohm: 200 watts x 1
- Output Power (14.4 V) @ 2 ohm: 350 watts x 1
- Output Power (14.4 V) @ 1 ohm: N/A
- Channels (mono): 1
- Frequency Response: 10 Hz - 300 Hz
All of our products can be professionally installed into your vehicle by our expert team.
For more information, please reach out via email, phone text or WhatsApp to discuss your requirements in further depth.
